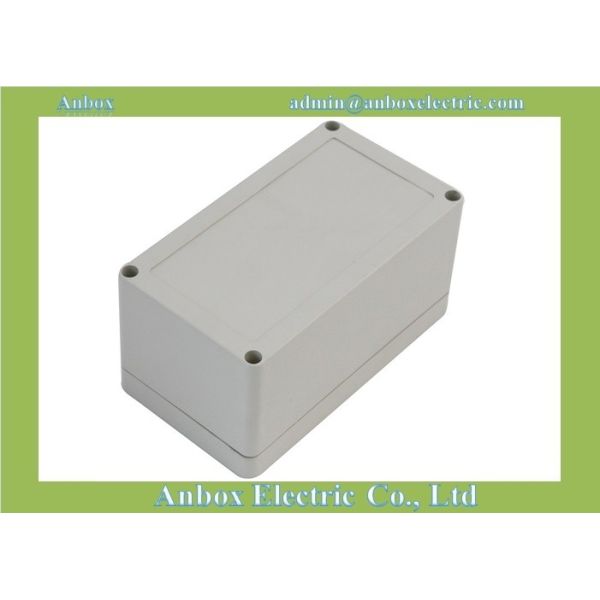

160x90x80mm light gray waterproof plastic electronic enclosures for project

Name: 160x90x80mm light gray waterproof plastic electronic enclosures for project
Brand: Anbox
Price: 2 USD

Quality 160x90x80mm light gray waterproof plastic electronic enclosures for project for sale

Brand Name : Anbox

Model Number : 160C-1

Certification : CE

Place of Origin : China

MOQ : 10pcs

Price : $2~$4

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000pcs/day

Delivery Time : 7 days

Packaging Details : pp bag/box

Contact Now

160x90x80mm light gray waterproof plastic electronic enclosures for project

Features:

Designed to IP65 of IEC60529.
Silicone rubber gasket makes this ideal for outdoor use in a wide range of adverse conditions
Captive steel screws thread into brass inserts for cover on/cover off applications
Plastic PCB mounting bosses are standard
Durable, high impact ABS, PC raw material
The Min.average wall thickness is 3mm
Gray cover and transparent cover are available
Assembly includes base, gasket, cover, and 4 steel enclosure screws
Custom requirements are available.
Accept OEM order as per your design.

Specifications:

Model No.	160C-1
External Size	1609080mm
Net weight	200g
Protection Level	IP65
Material	ABS, PC, Flame retardant, UV stabilized
Flame rating	UL 94-HB, UL94-V2, UL94-V0, UL94-5VA
Temperature Range	-20°C~80°C(ABS), -40°C~100°C (PC)
Impact resistant	IK07(ABS), IK08(PC)

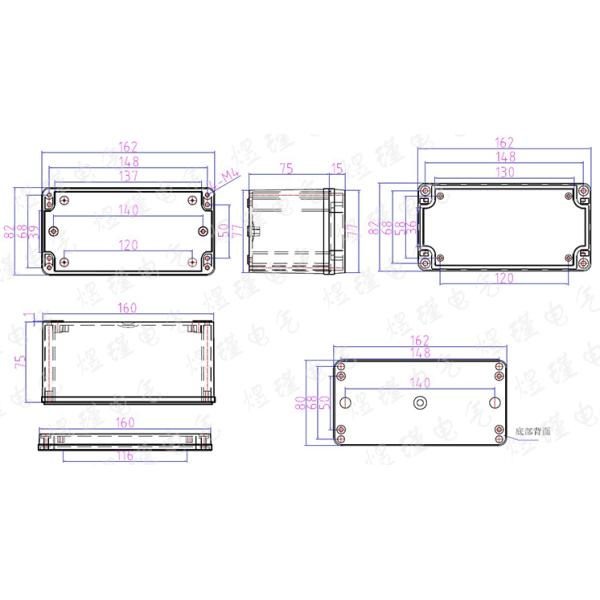

Drawing reference

(might have tolerance)

160x90x80mm light gray waterproof plastic electronic enclosures for project

Contact us

Annie Zeng
AnBox Electronic Co.Ltd
Website:www.anboxelectric.com
Skype:anboxelectric@hotmail.com
Wechat: Annie032789
Email: annie@anboxelectric.com
Whatsapp/Tel:(86)18824331851

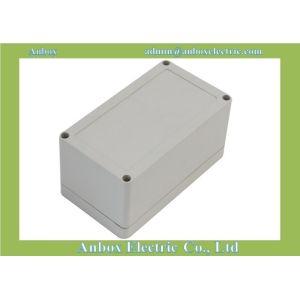

160x90x80mm light gray waterproof plastic electronic enclosures for project Images
